PMR Range

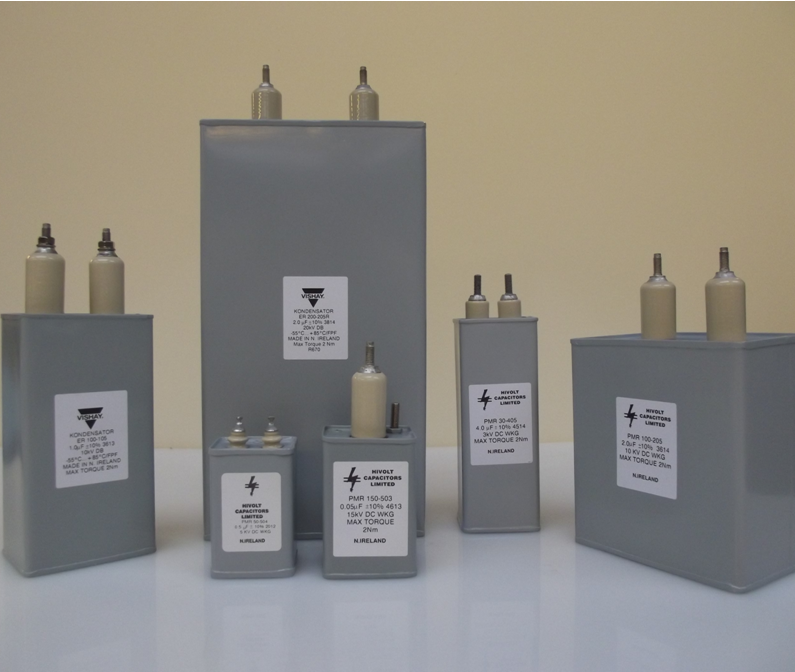

The PMR range are in the form of a rolled-seam tinplate can that is hermetically sealed. External connections are via ceramic bushings with threaded studs or solder tags

Specification

The PMR range are impregnated and filled with a mineral oil. The container is a rolled-seamed tin plate case that is hermetically sealed. The internal construction is designed to prevent movement when the capacitor is subjected to mechanical shock or vibration. External connections are via ceramic terminals with threaded studs or solder tags. Capacitor are supplied with clip-on brackets. Other brackets are available on request. These capacitors can be mounted in any postion. The finish is a coat of high build light grey weatherwork cellulose enamel paint (other colours available on request).

Note the impregnant used is a non toxic highly refined, purified and inhibited mineral oil.

APPLICATIONS

The PMR Range of capacitors is specifically designed for DC apllications such as filters, bypass and coupling of low frequency audio. Other apllications include:

  • Pulse forming networks
  • Oscillator Circuits
  • Energy Storage
  • Arc and Spark Suppression
  • Integrating Circuits
  • High Voltage Smoothing

Other Information

Capacitors required for A.C. applications and High Discharge rates can also be designed from the PMR range. Consult Hivolt Capacitors Limited for your specific requirements.

Capacitance Range: 0.01µF – 100µF. The tolerance is +/-10%. Other tolerances are available on request. Nominal values measured at 1kHz.

Temperature Range: -55°C to 85°C. The nominal voltage rating is applicable from -55°C to 85°C. Derating is required for higher operating temperatures.

Temperature Coefficient: Capacitance will increase by 2% per 100°C temperature change.

Voltage Range: 200Vdc – 40kVdc

RIPPLE:

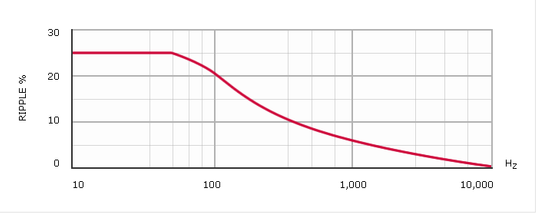

Ripple: The sum of the peak ripple voltage and the DC voltage should not exceed the rated voltage. The graph above shows permissible peak-to-peak ripple voltage as a percentage of rated voltage for various frequencies.

TEST VOLTAGE: V TEST

Test Voltage: V Test
For DC rating <20kV:   V Test = 2.0 x Rated Voltage for 1 minute.
For DC rating ≥20kV:   V Test = 1.5 x Rated Voltage for 1 minute.
Case to terminal Test voltage = V Test + 1kV

Power Factor

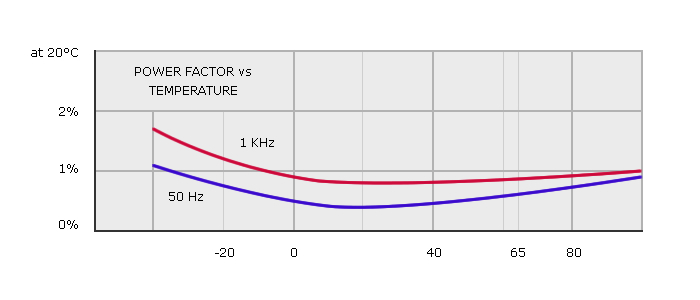

Power Factor: Variable; function of temperature and frequency. See fig 2. Nominal value < 0.5% at 20ºC.

Dieletric Resistance

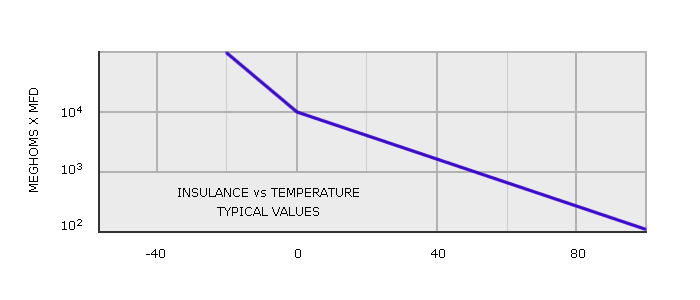

Dieletric Resistance: (Parallel resistance) Indicated by the graph of insulance (Mohms x µF) vs Temperature (fig 3). The insulance(Mohms x µF) is nominally 10000s at +20ºC. (Measurements taken after 1 minute with an applied voltage of 500V).

Life expectancy

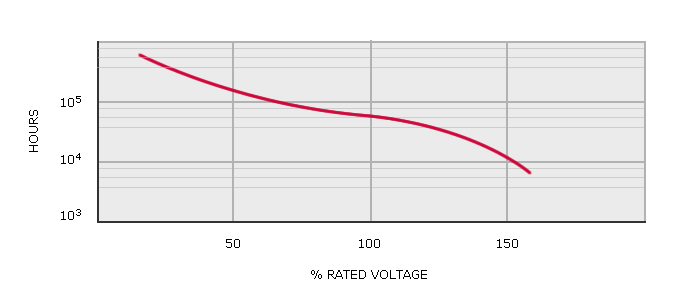

Life expectancy: PMR type capacitors are designed for a life expectancy of 50000 hours at 65ºC. To achieve the same life expectancy at 85ºC derate to 60% of rated voltage.

Weight: The approximate weight in kg of capacitors in the PMR range can be estimated by multiplying the volume of the capacitor container (in cubic mm) by 1.45 x 10-6

Flashover

V Rated < 5kV, the terminals will withstand 125% of rated voltage without flashover @ 85mm Hg (equivalent to 50000 ft altitude).

V Rated > 5kV, the terminals will withstand 125% of rated voltage without flashover @ 500mm Hg (equivalent to 10000 ft altitude).

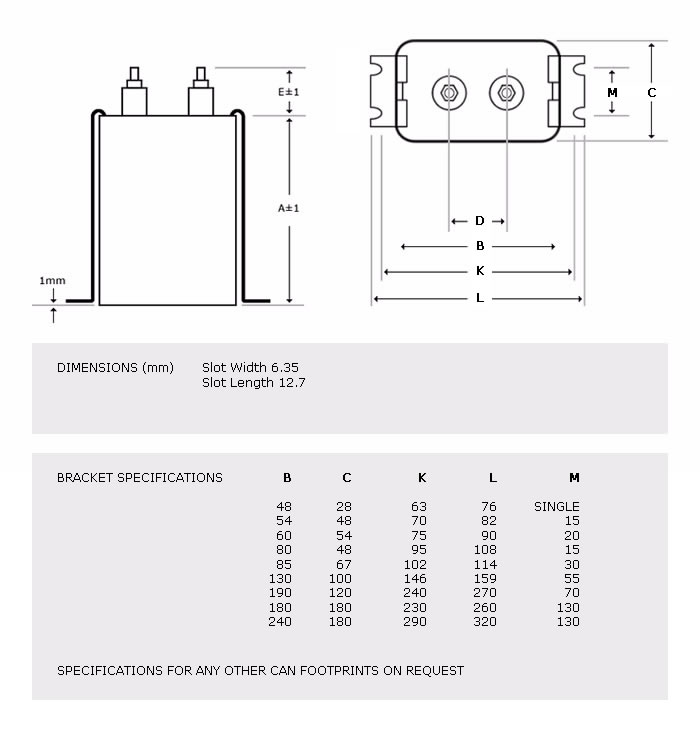

Dimensions

1.5KV DC WKG

Part Number CAP uF A B C D E
PMR15-104 0.1 60 48 28 20 20
PMR15-504 0.5 60 48 28 20 20
PMR15-205 2 75 54 48 22 35
PMR15-805 8 95 85 67 40 35
PMR15-126 12 135 85 67 40 35
PMR15-256 25 115 130 100 50 35
PMR15-506 50 180 130 100 50 35

1KV DC WKG

Part Number CAP uF A B C D E
PMR10-104 0.1 50 48 28 20 20
PMR10-504 0.5 50 48 28 20 20
PMR10-105 1 75 48 28 20 20
PMR10-405 4 75 60 54 25 35
PMR10-106 10 115 80 48 40 35
PMR10-256 25 115 85 67 40 35
PMR10-506 50 115 130 100 50 35

2KV DC WKG

Part Number CAP uF A B C D E
PMR20-104 0.1 60 48 28 20 20
PMR20-504 0.5 60 48 28 20 20
PMR20-205 2 75 54 48 22 35
PMR20-605 6 135 60 54 25 35
PMR20-126 12 135 85 67 40 35
PMR20-206 20 115 130 100 50 35

3KV DC WKG4

Part Number CAP uF A B C D E
PMR30-104 0.1 60 48 28 20 20
PMR30-504 0.5 75 48 28 20 20
PMR30-105 1 115 48 28 20 20
PMR30-405 4 155 60 54 25 35
PMR30-106 10 95 130 100 50 35
PMR30-256 25 180 130 100 50 35

6KV DC WKG

Part Number CAP uF A B C D E
PMR 60-104 0.1 65 54 48 * 35
PMR 60-504 0.5 100 80 48 40 35
PMR 60-205 2 100 130 100 50 35
PMR 60-605 6 180 130 100 50 35
PMR 60-106 10 290 130 100 50 35
PMR 60-206 20 180 220 164 125 60

8KV DC WKG

Part Number CAP uF A B C D E
PMR 80-503 0.05 58 60 54 * 60
PMR 80-254 0.25 85 60 54 * 60
PMR 80-105 1 120 85 67 40 60
PMR 80-405 4 200 130 100 50 60
PMR 80-805 8 345 130 100 50 60
PMR 80-156 15 280 180 180 75 60

10KV DC WKG

Part Number CAP uF A B C D E
PMR 100-503 0.05 58 80 48 40 60
PMR 100-504 0.5 140 80 48 40 60
PMR 100-105 1 160 85 67 40 60
PMR 100-205 2 140 130 100 50 60
PMR 100-605 6 350 130 100 50 60
PMR 100-156 15 350 180 180 75 60

12KV DC WKG

Part Number CAP uF A B C D E
PMR 120-503 0.05 75 85 67 40 60
PMR 120-104 0.1 100 85 67 40 60
PMR 120-254 0.25 105 85 67 40 60
PMR 120-105 1 145 130 100 75 60
PMR 120-205 2 240 130 100 75 60
PMR 120-405 4 280 190 120 75 60

15KV DC WKG

Part Number CAP uF A B C D E
PMR 150-103 0.01 60 60 54 * 60
PMR 150-503 0.05 85 60 54 * 60
PMR 150-254 0.25 125 85 67 40 60
PMR 150-504 0.5 190 85 67 40 60
PMR 150-105 1 160 130 100 75 60
PMR 150-205 2 190 159 121 75 60

20KV DC WKG

Part Number CAP uF A B C D E
PMR 200-103 0.01 70 80 48 * 60
PMR 200-104 0.1 105 85 67 40 60
PMR 200-254 0.25 190 85 67 40 60
PMR 200-504 0.5 160 130 100 75 60
PMR 200-105 1 300 130 100 75 60
PMR 200-405 4 305 240 180 100 100

25KV DC WKG

Part Number CAP uF A B C D E
PMR 250-503 0.05 110 85 67 * 70
PMR 250-104X 0.1 95 130 100 65 70
PMR 250-254 0.25 130 130 100 65 70
PMR 250-504 0.5 250 130 100 65 70

30KV DC WKG

Part Number CAP uF A B C D E
PMR 300-303 0.03 120 85 67 * 70
PMR 300-104 0.1 200 85 67 * 70
PMR 300-104X 0.1 120 130 100 65 70
PMR 300-504 0.5 310 130 100 65 70
PMR 300-105 1 295 180 180 75 100

40KV DC WKG

Part Number CAP uF A B C D E
PMR 400-303 0.03 160 85 67 * 70
PMR 400-503 0.05 210 85 67 * 70
PMR 400-503X 0.05 125 130 100 65 70

NOTES:

Capacitors below with 20mm high terminals have solder tag connections instead of M6 terminal screws

Custom designed capacitors are available to meet your specific application.

These capacitors are fitted with one high voltage terminal and one earth terminal.
An additional terminal for connection to case (earth-terminal) is available as an optional extra. Add suffix M to Part Number.
Note: Non standard size containers can be supplied on request

Flashover:V Rated < 5kV, the terminals will withstand 125% of rated voltage without flashover @ 85mm Hg (equivalent to 50000 ft altitude).V Rated > 5kV, the terminals will withstand 125% of rated voltage without flashover @ 500mm Hg (equivalent to 10000 ft altitude).
